Baofeng UV-5RH Tri-band Walkie Talkie UHF 400-520MHz VHF136-174MHz 200-260MHz Wireless Fast Copy One Channel 7W 999Ch FM Radio

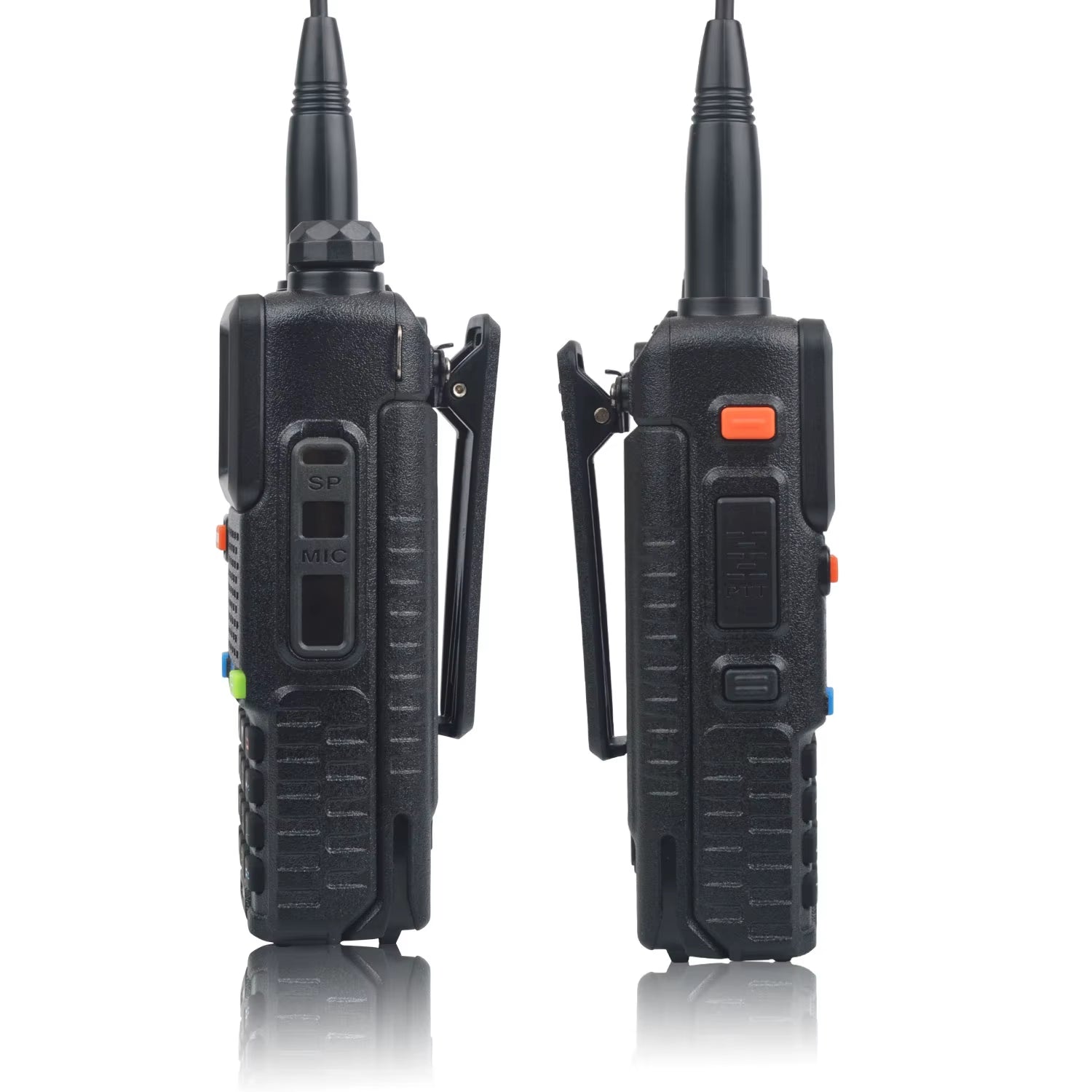

Photos:

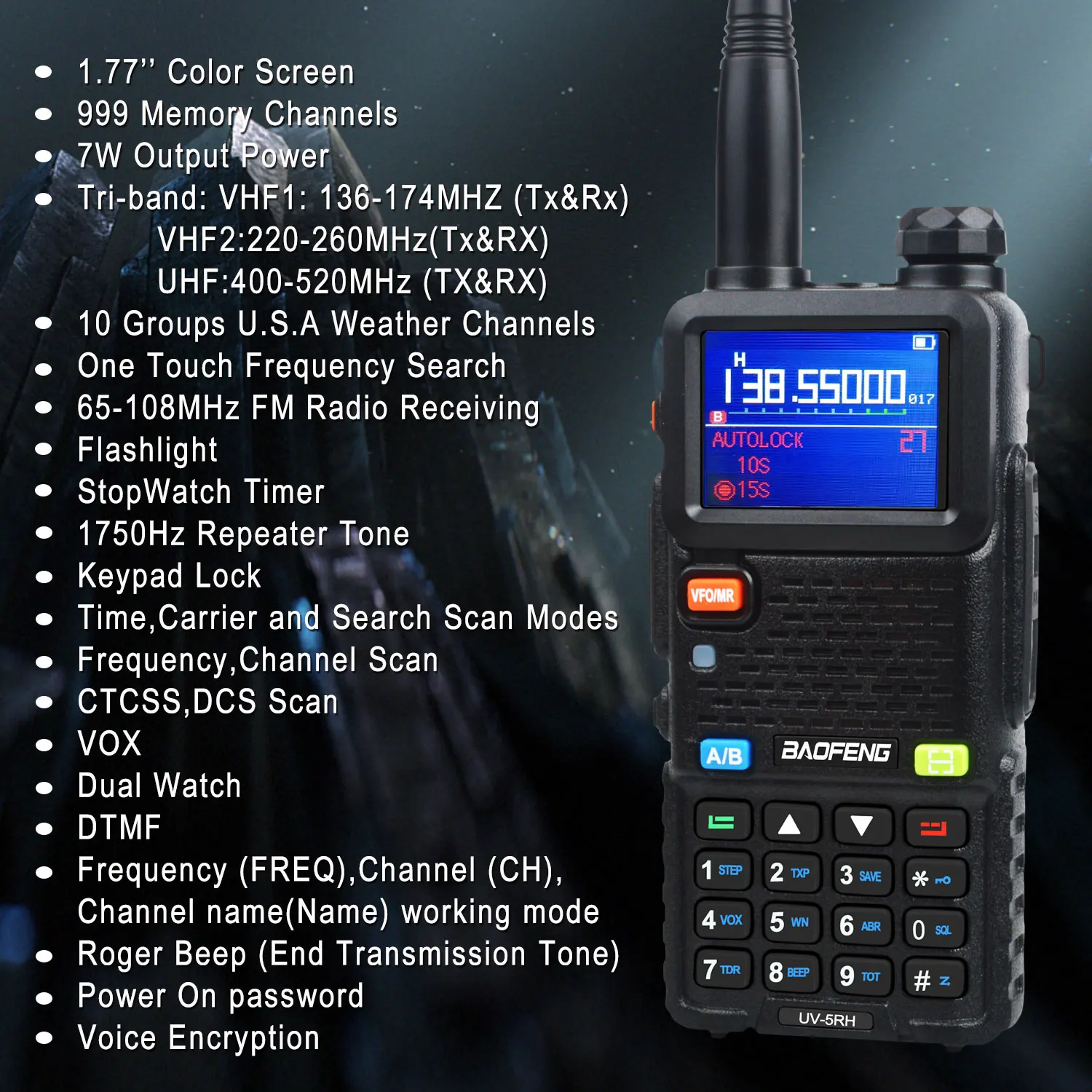

Features:

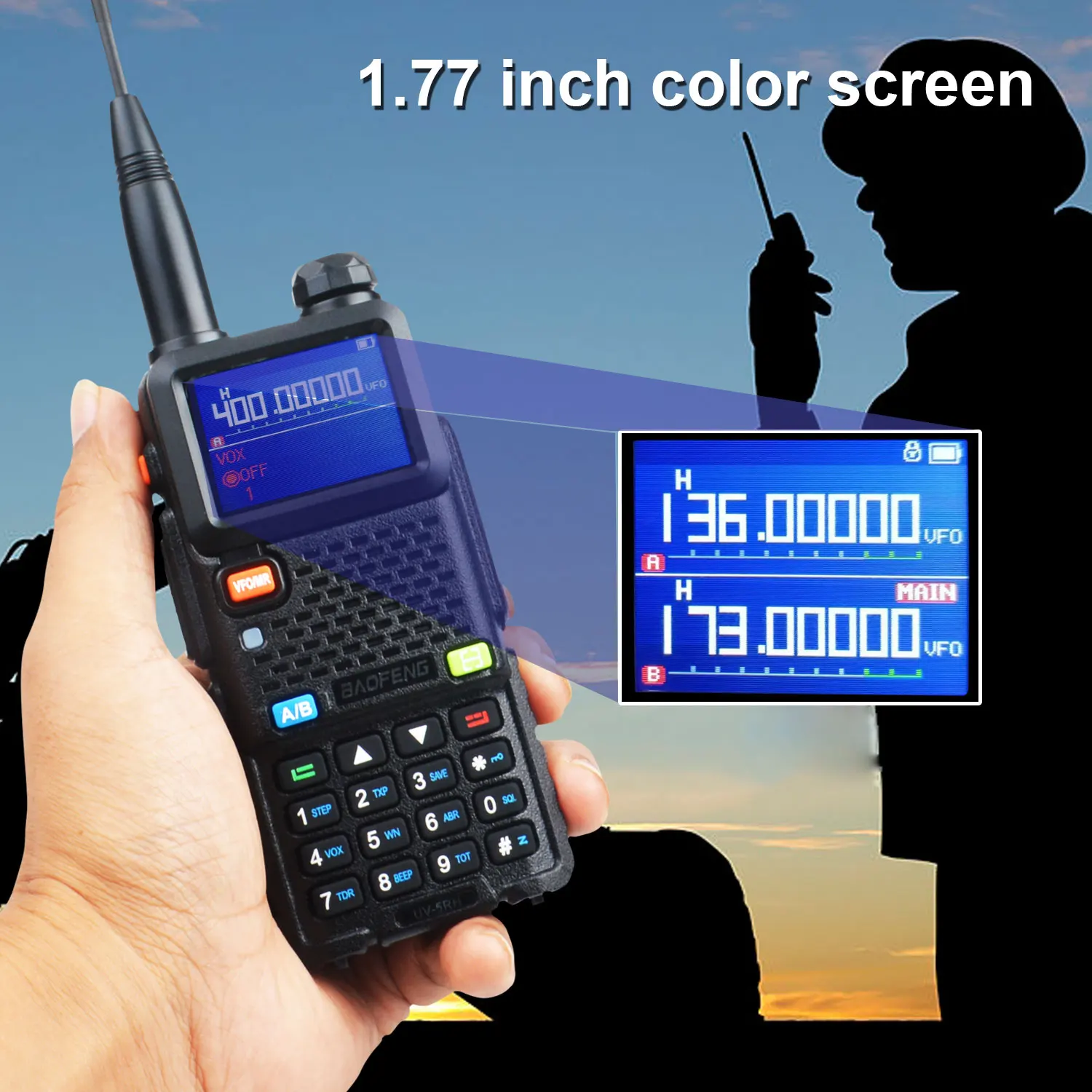

1.77” Color Screen
999 Memory Channels
7W Output Power
Tri-band: VHF1: 136-174MHZ (Tx&Rx)
VHF2:200-260MHz(Tx&RX)
UHF:400-520MHz (TX&RX)
10 Groups U.S.A Weather forecast Channels

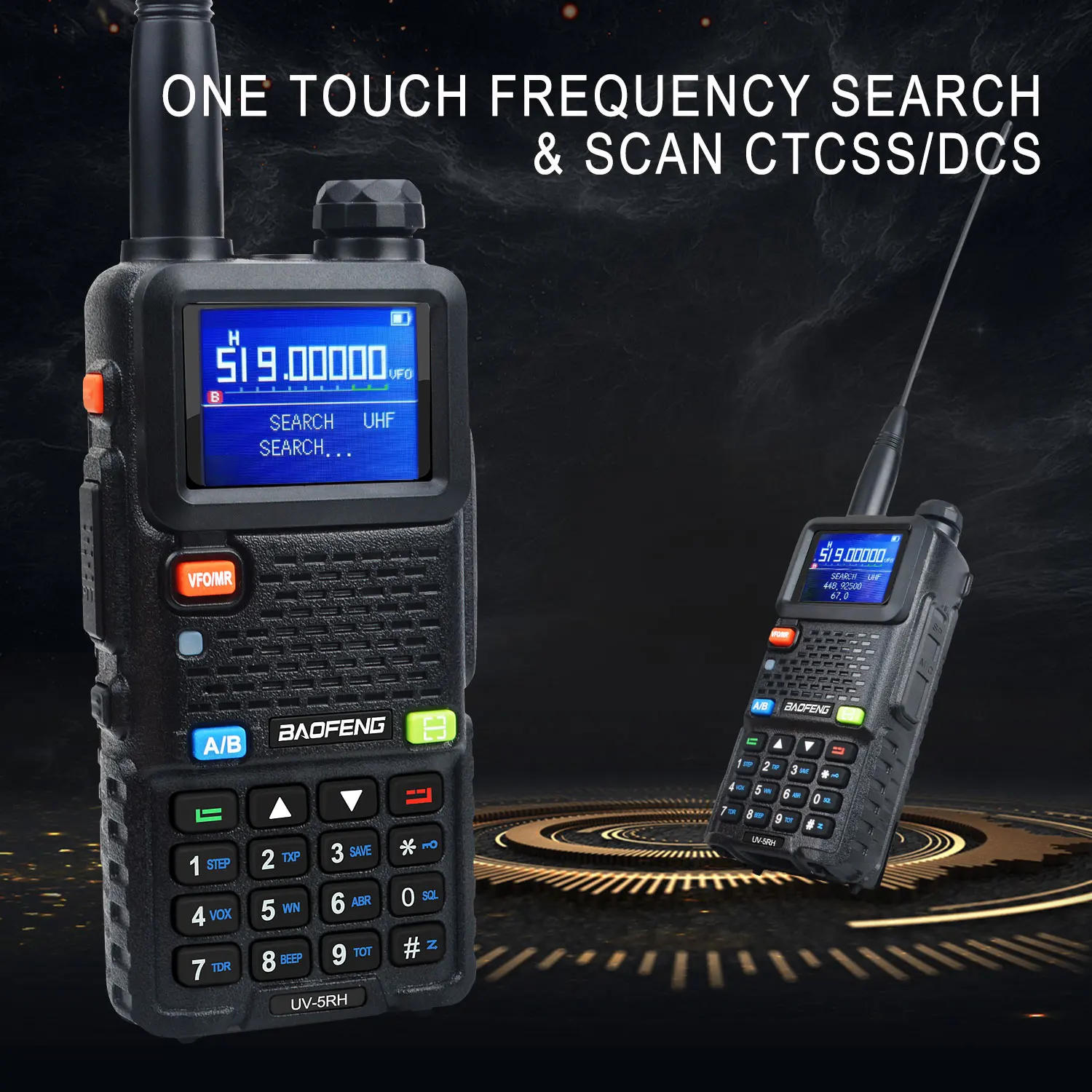

One Touch Frequency Search

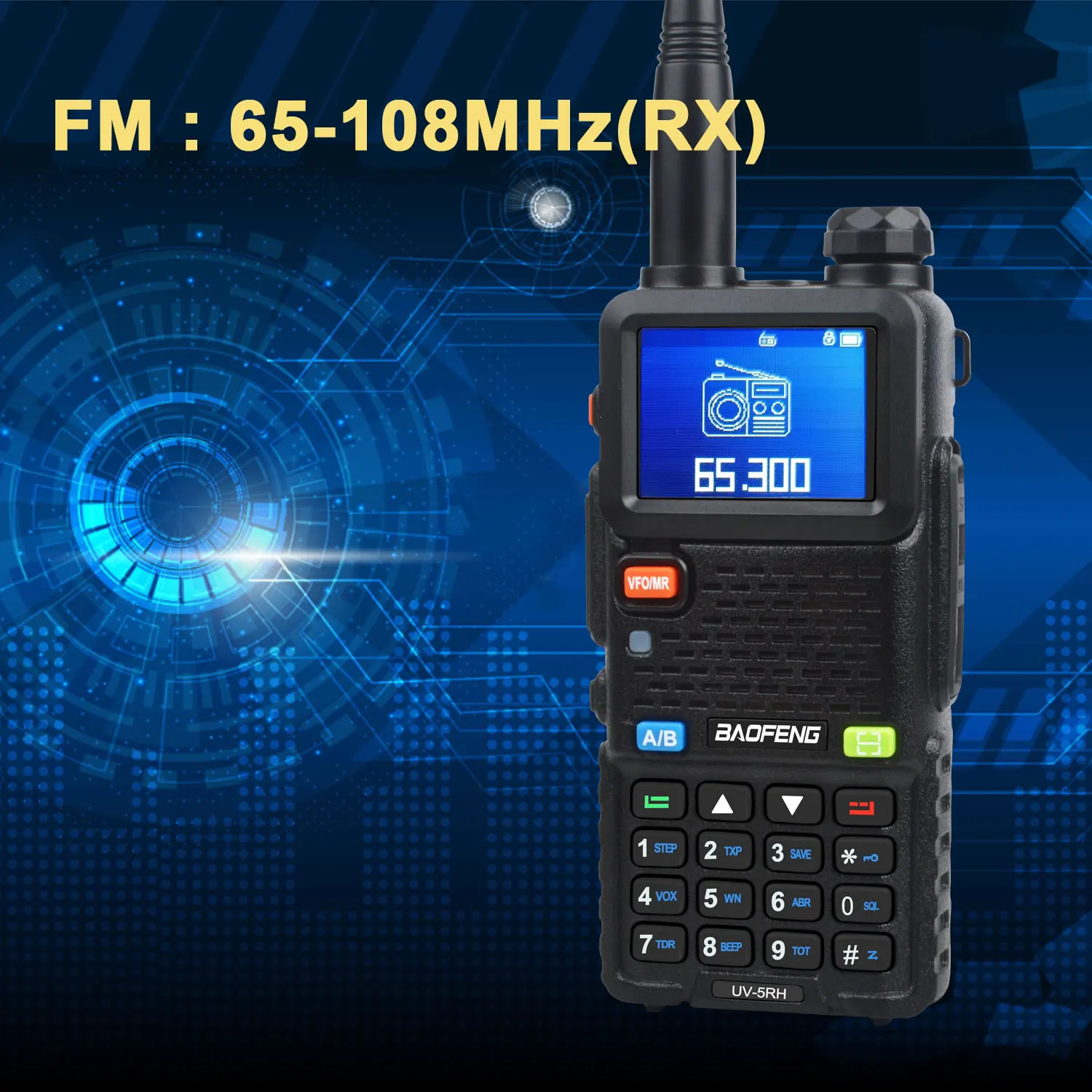

65-108MHz FM Radio Receiving

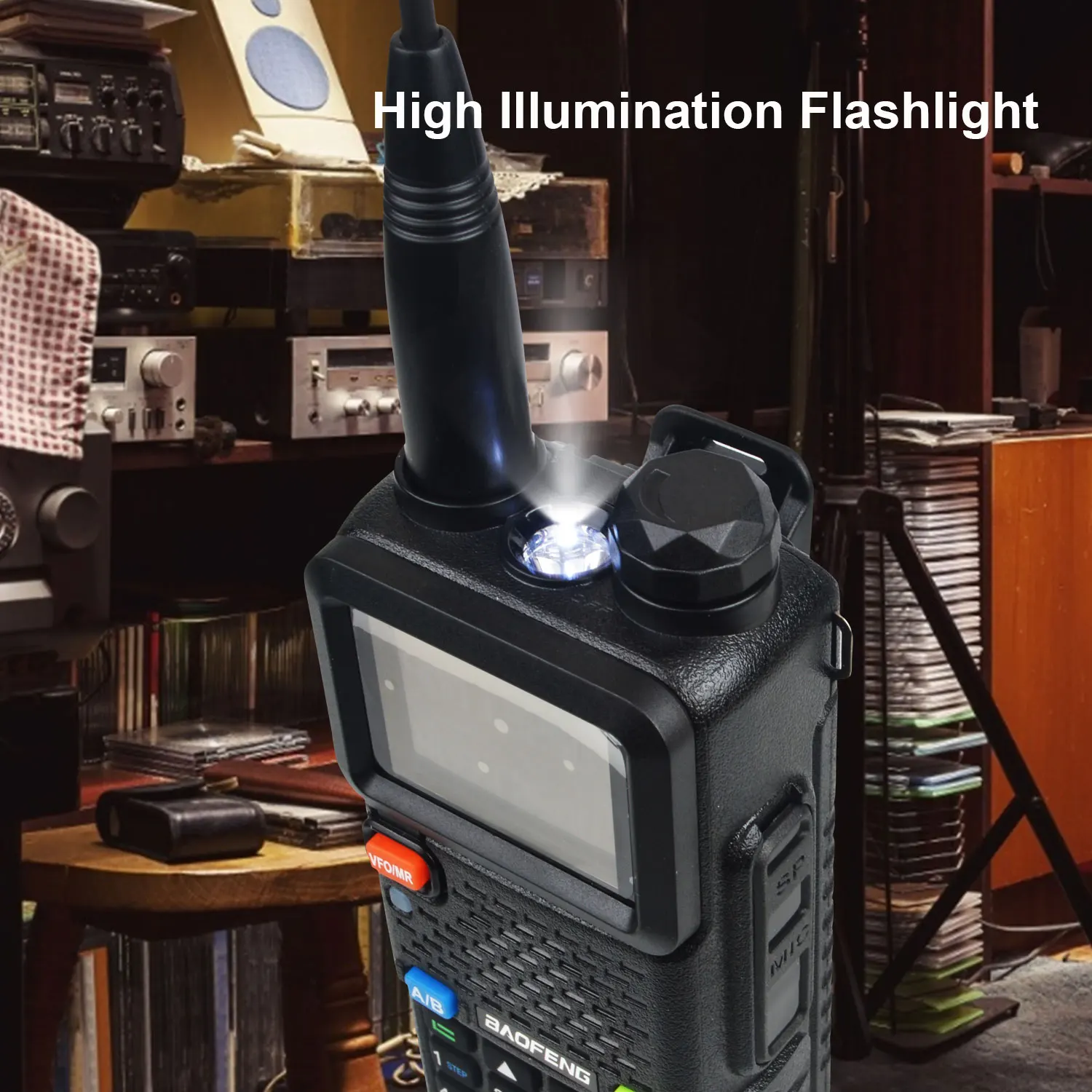

Flashlight

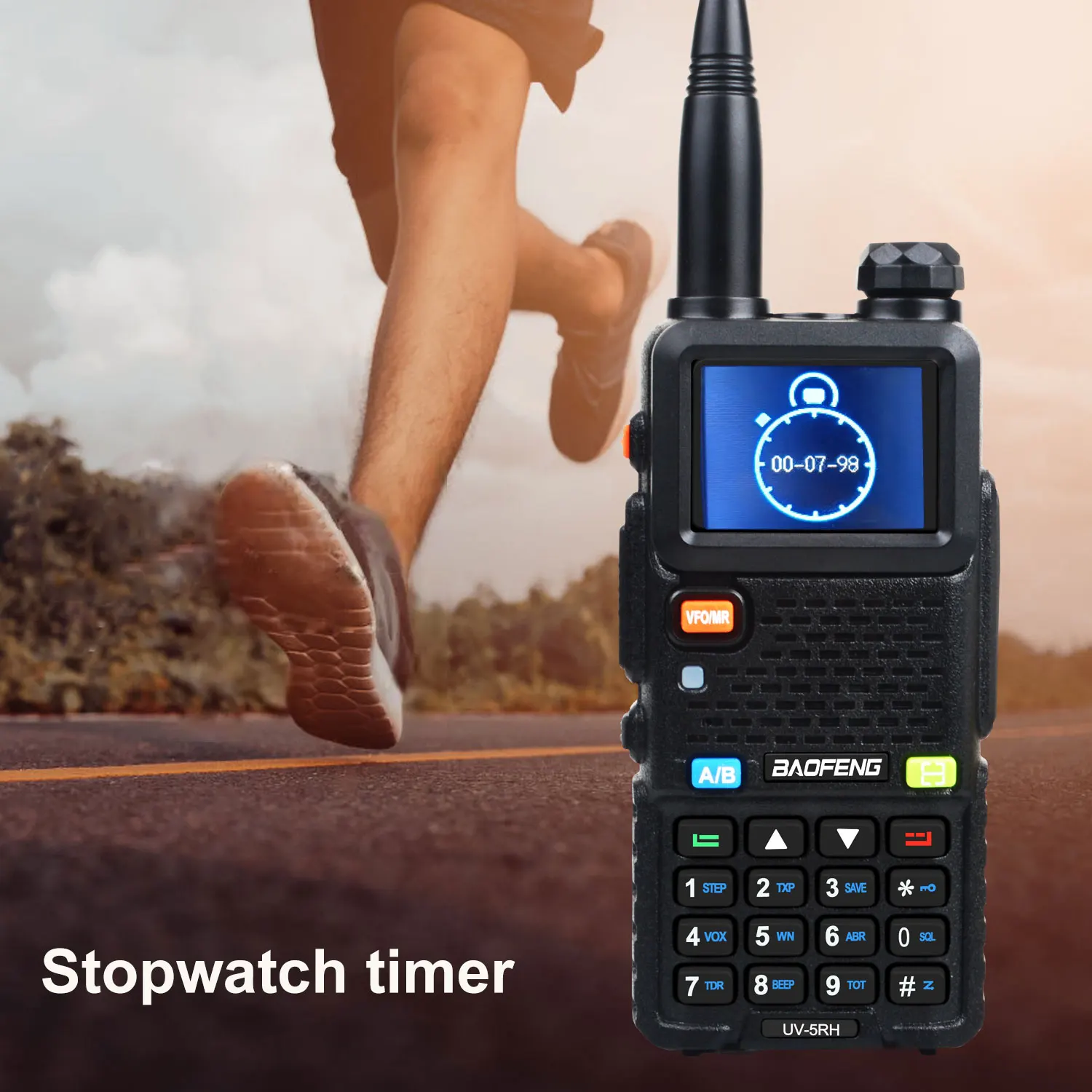

Stop-watch Timer
1750Hz Repeater Tone
Keypad Lock
Time,Carrier and Search Scan Modes
Frequency,Channel Scan
CTCSS,DCS Scan
VOX
Dual Watch
DTMF
Frequency (FREQ),Channel (CH) and Channel name(Name) working mode
Roger Beep (End Transmission Tone)
Power On password
Voice Encryption

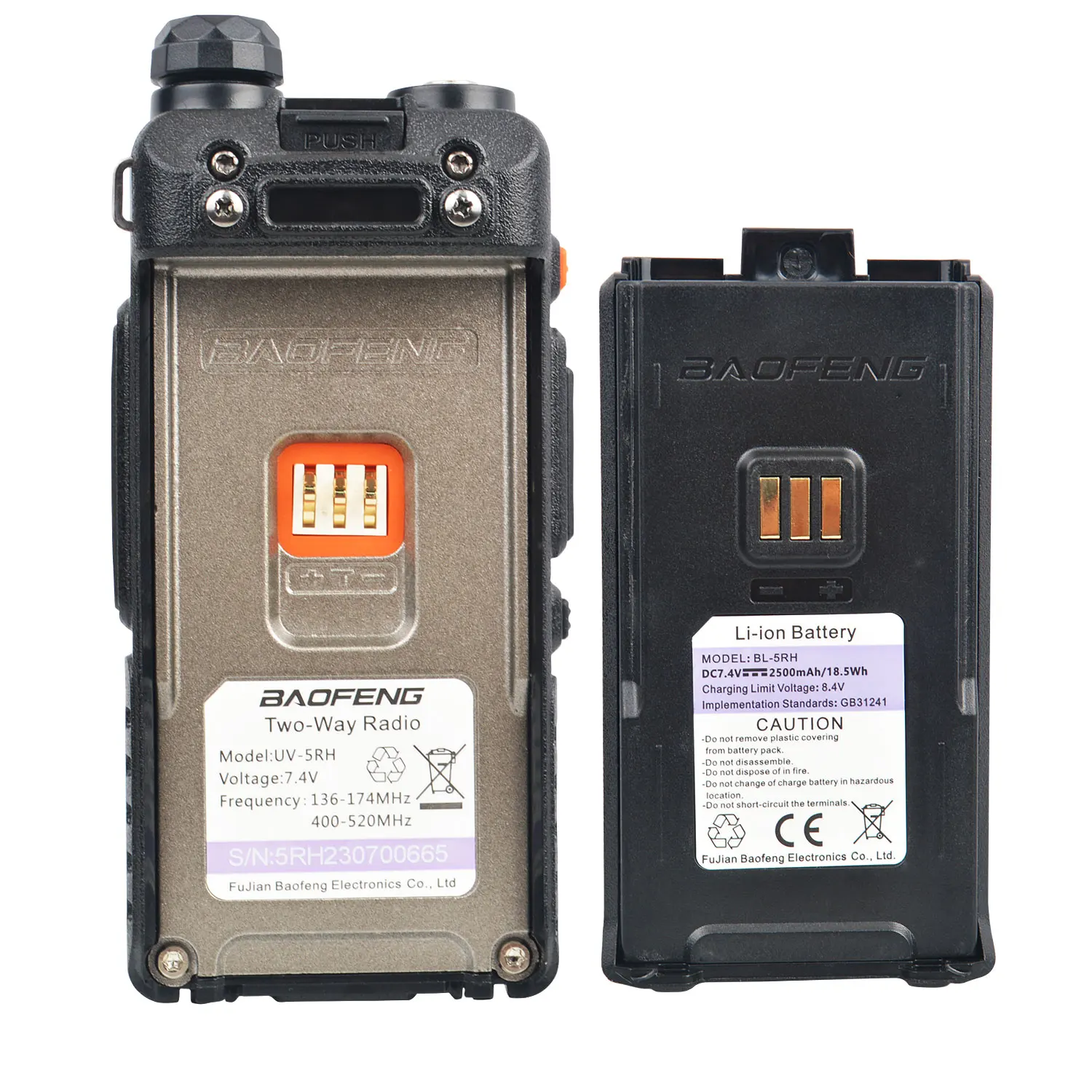

2500mAh/18.5Wh Rechargeable Li-ion Battery Pack

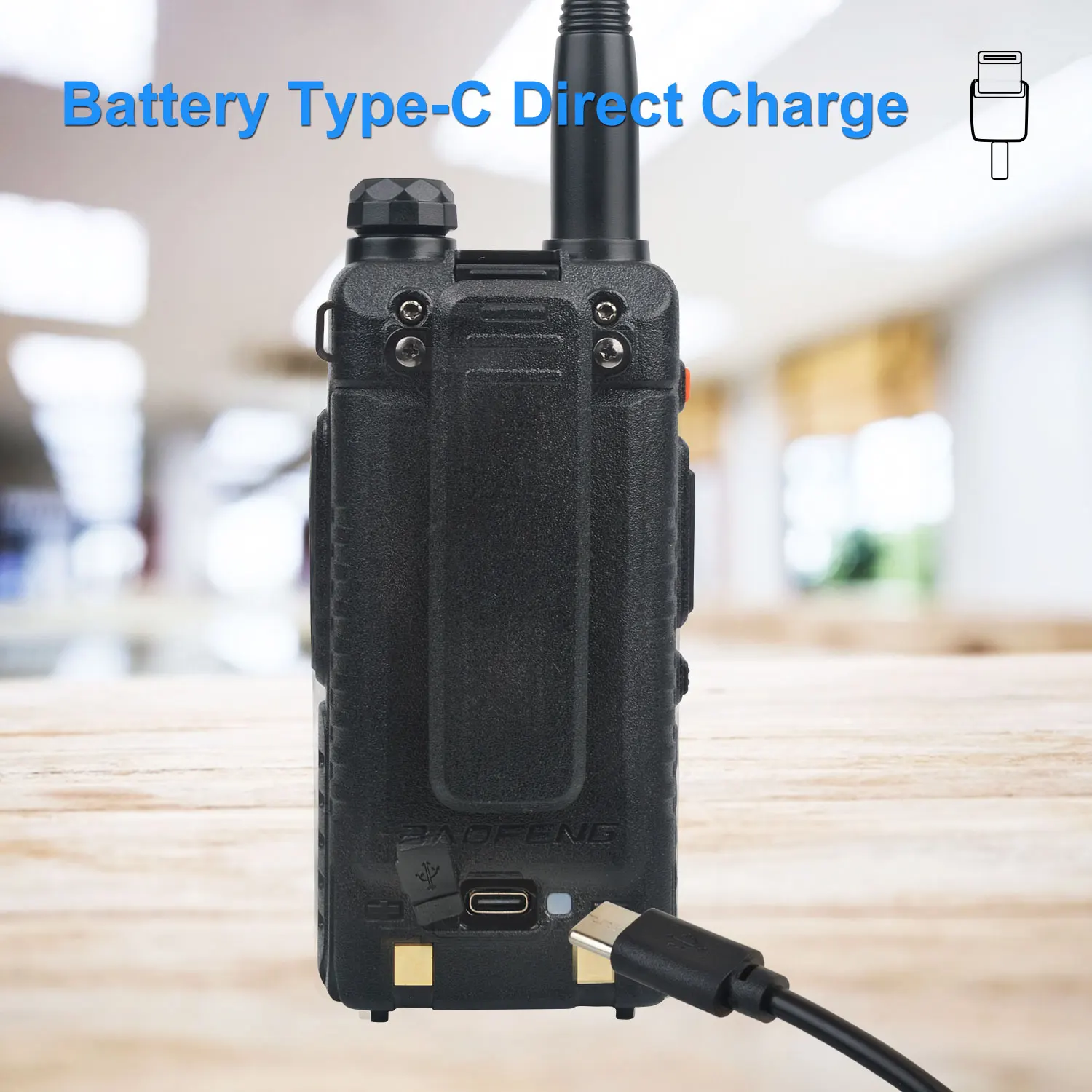

Battery Type-C Direct Charging Port
Technical Specifications:
General | |
Channel Capacity |
999 |
Channel Spacing |
25.0KHz/12.5KHz |
Input Voltage |
7.4VDC |
|
Current Drain: Standby Receive Transmit |
45mA 380mA ≤1.6A(High power), ≤1.2A (Low power) |
Operating Temperature |
-10°cto 60°c |
Antenna Impedance |
50 ohm |

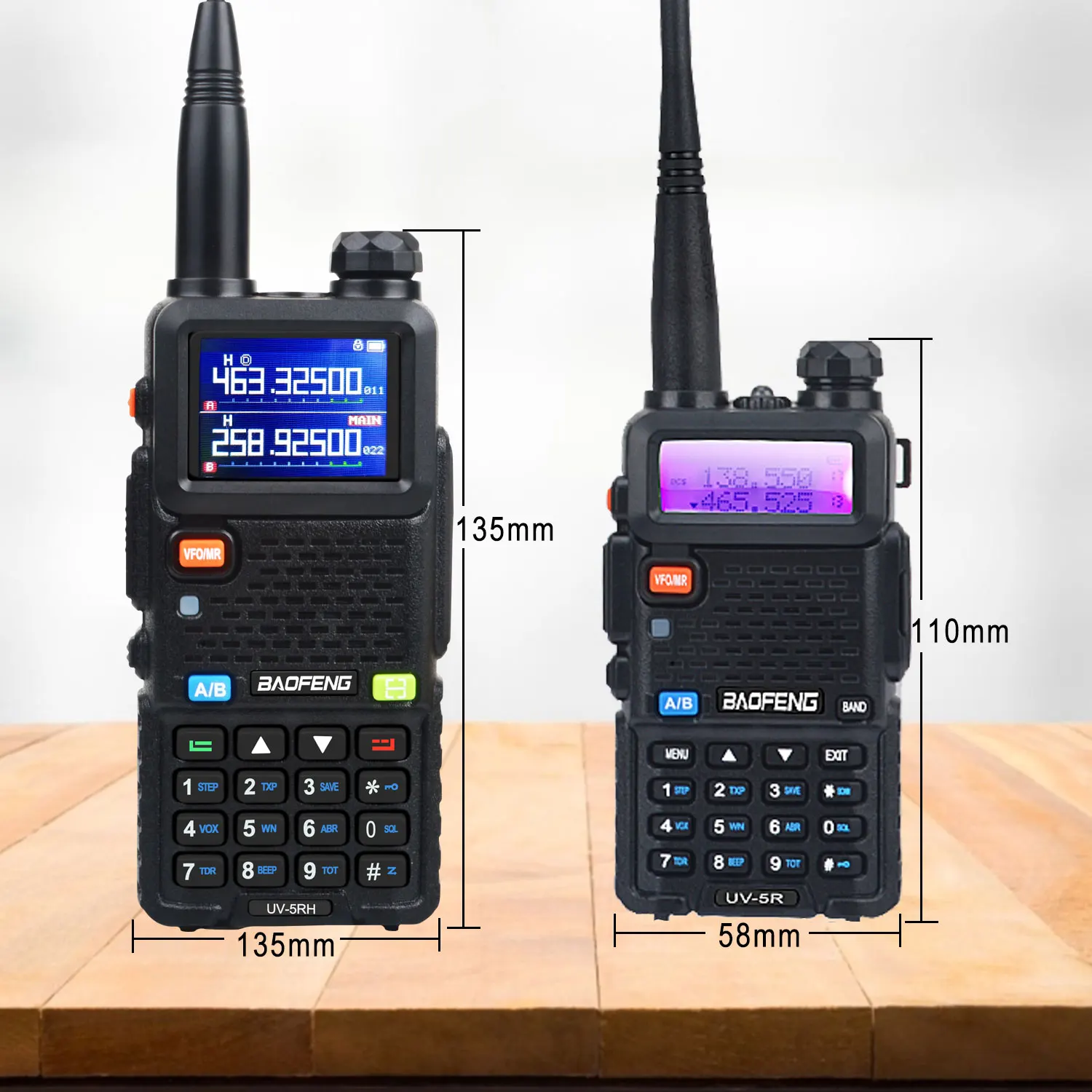

Radio Dimensions |

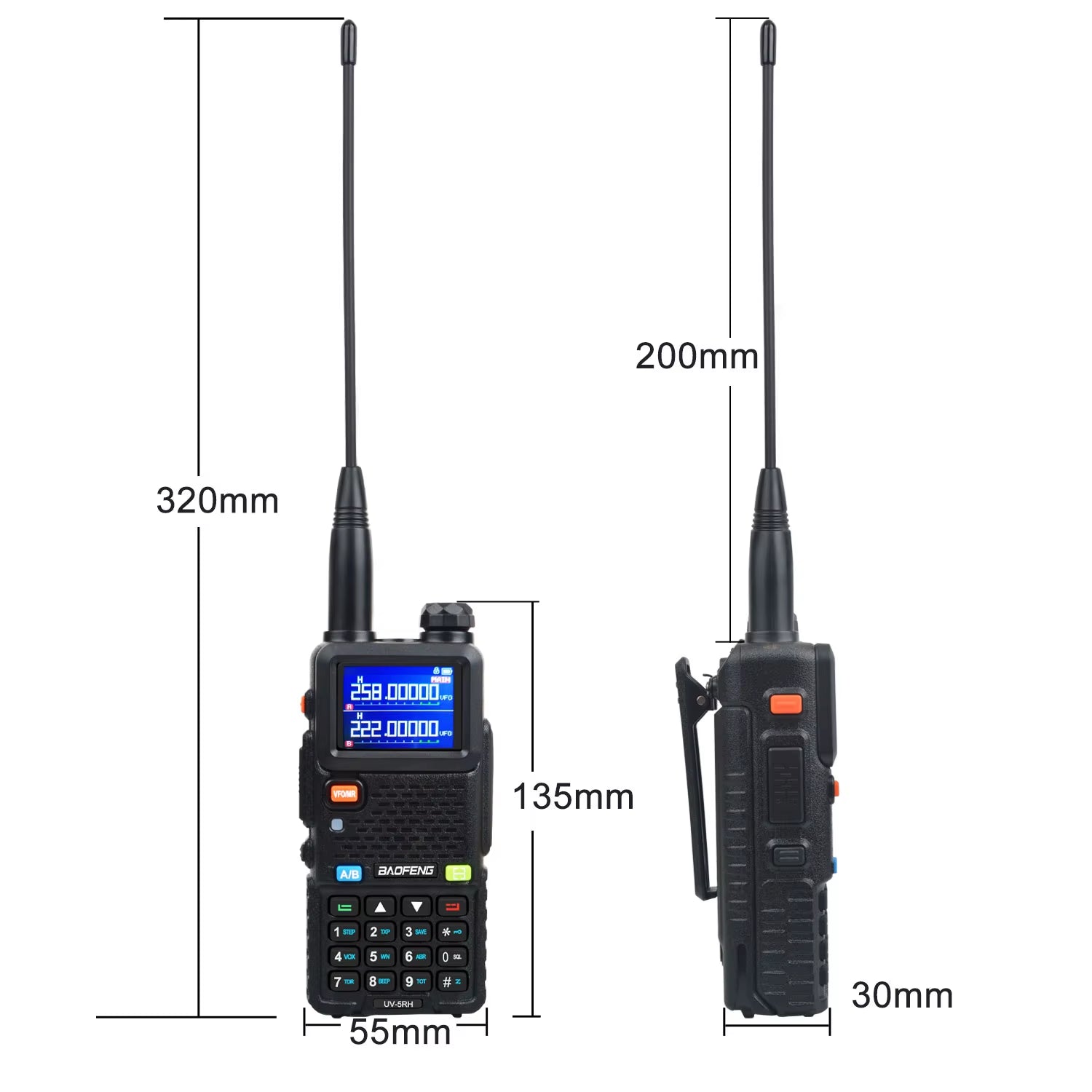

135mm*55mm*30mm(Antenna Not included) |
Radio weight |
260g (with Li-ON battery) |
Transmitter | |
Frequency Range (TX) |
136-174MHz & 220-260MHz &400-520MHz |
RF Output Power |
7Watt |
Modulation |
16K ΦF3E/11K ΦF3E |
Spurious Emission |
-16dBm< 1GHz, -16dBm> 1GHz |
Frequency Stability |
±2.5ppm |
Audio Distortion |
≤5% |
FM Hum & Noise |
40dB |
Receiver | |
Frequency Range |
FM: 65-108MHz (RX) VHF1: 136-174MHz & UHF 400-520MHz (Scan receiver) VHF2: 220-260MHz |
Sensitivity:12dB SINAD |
-120dBM |
Adjacent Channel Selectivity |
-60dBm |
Intermodulation and rejection |
-70dBm |
Rated Audio Power Output |
0.75Wats 16ohm |
Rated Audio Distortion |
≤5% |
Note: All Specifications may be modified without prior notice or liability. Thank you!
Notes:
The UV-5RH series products are divided into M Version and L version. M version supports AM 108-136,Police 350-390MHz scanning reception and voice scrambling function. The L version doesn’t support those frequencies and function. And what we are selling here is UV-5RH L Version.

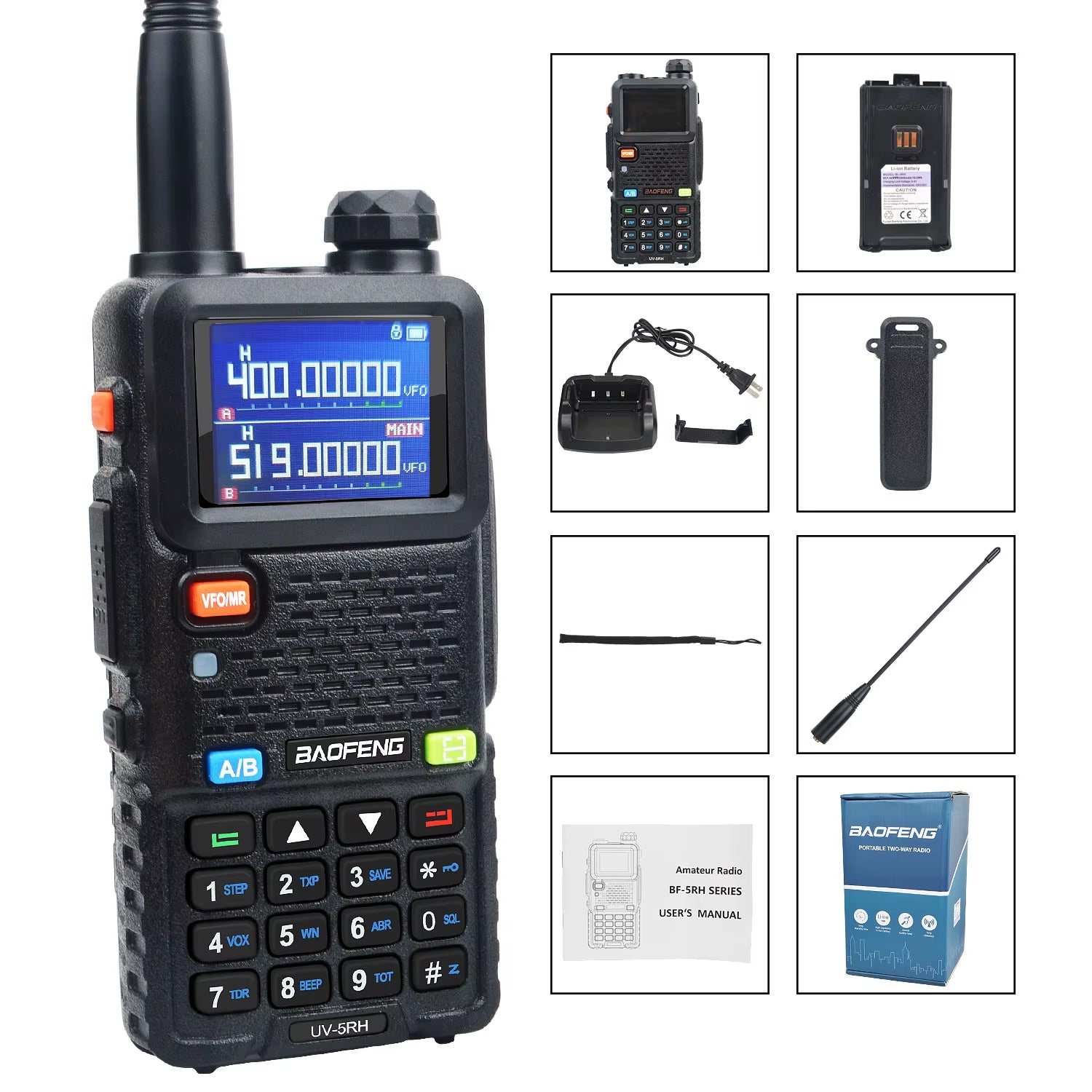

Package Contains:
1× UV-5RH Radio Body
1× 7.4V 2500mah Li-ion Battery Pack
1× SMA-Female Dual Band Antenna

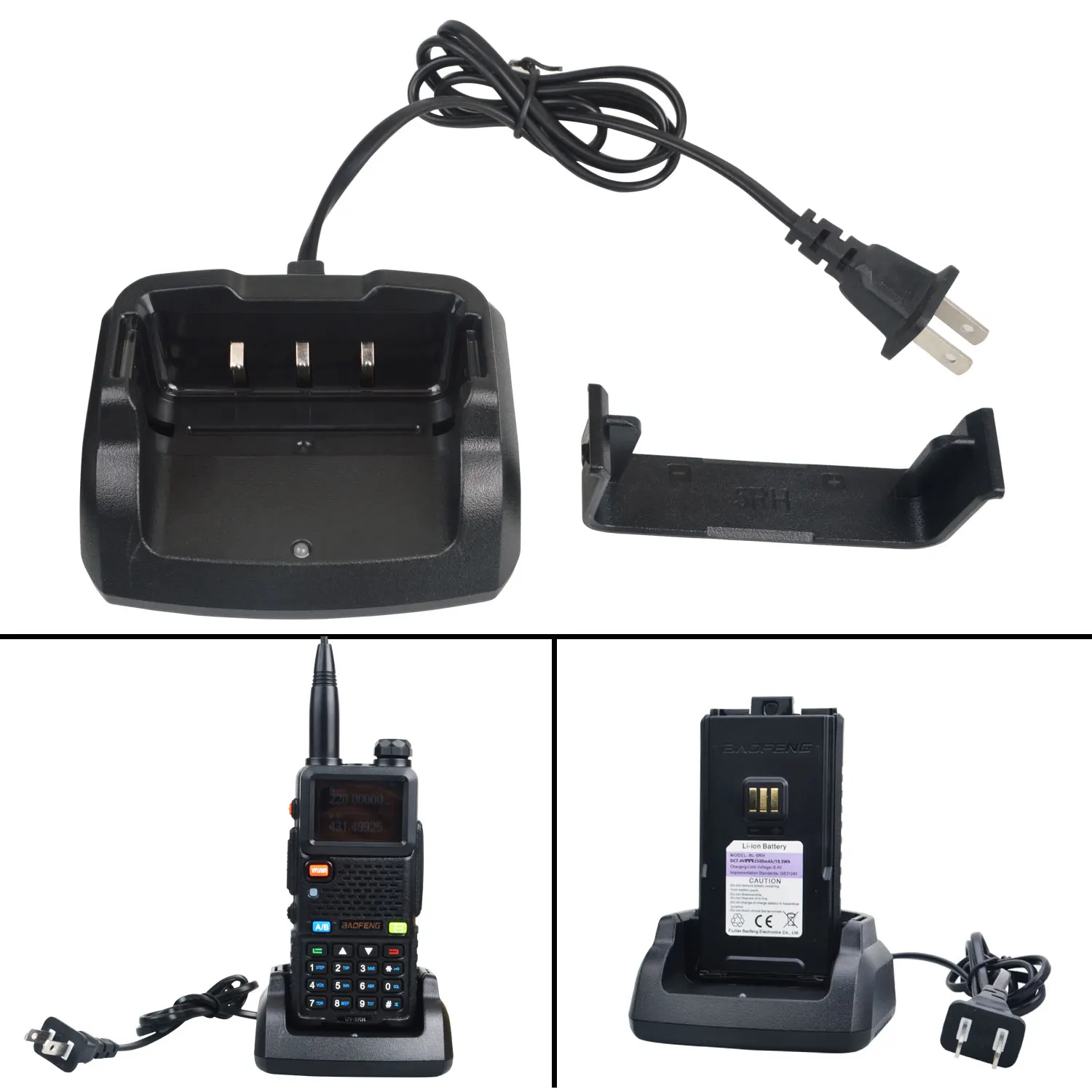

1× Desktop Charger with Correct Adapter for your Country

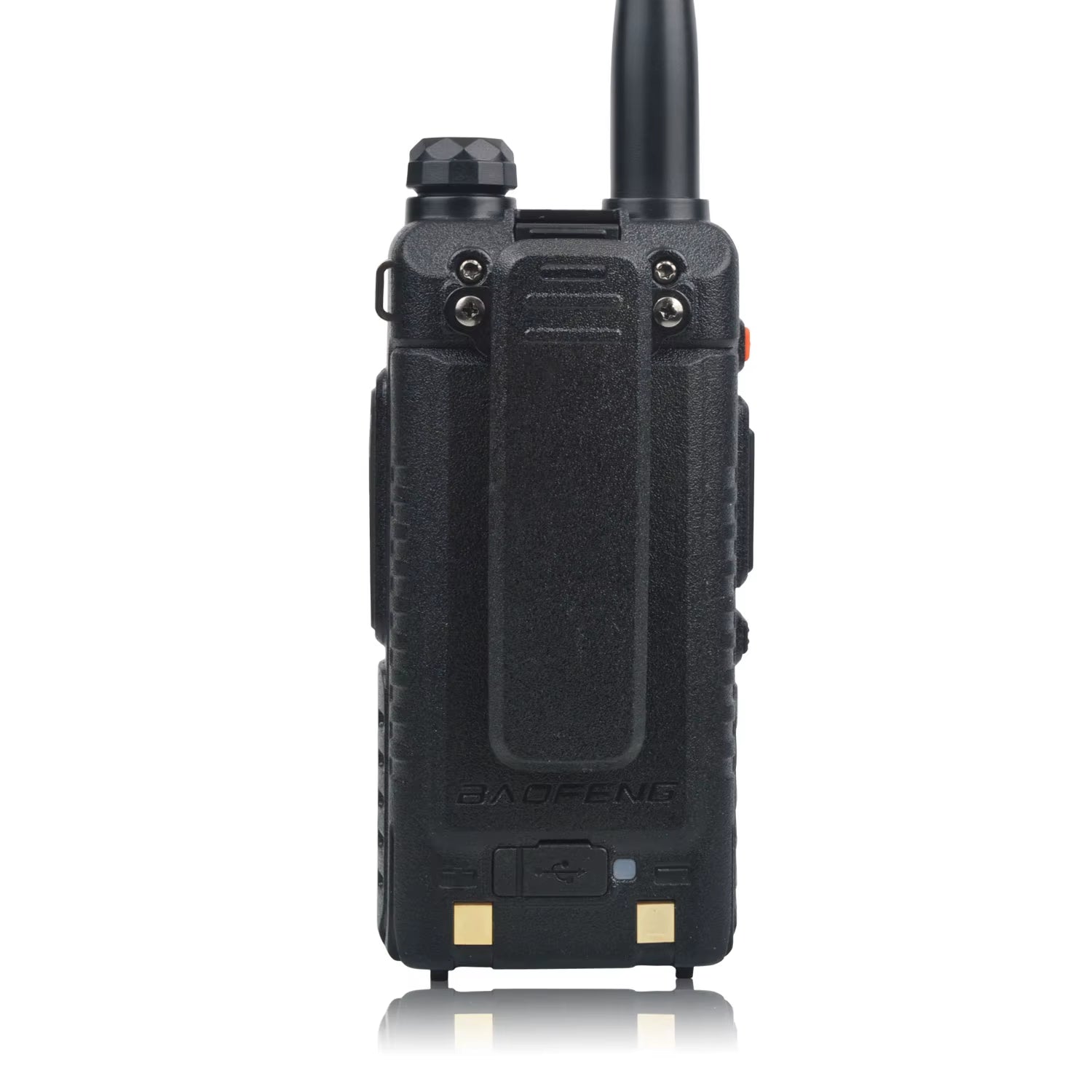

1× Belt Clip
1× Plastic Snap-fit attachment for Charger
1× Handstrap
1× ENG Manual
